365-0386 - Trident Marine 3/8" x 50' A1-15 Fuel Line Hose - Black

3/8" x 50' A1-15 Fuel Line Hose - Black

The Trident Barrier Lined A1-15 Fuel Hose is specifically designed for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). It is constructed with an advanced formulation resistant to fuel, fire, and aging, featuring a unique "Barrier Liner" that prevents fuel from contacting rubber.

Applications:

• Marine fuel distribution, return, vent, and transfer
• Corrosion-resistant for all marine fuels, including gasoline, alcohol blends (CE-10), diesel, and biodiesel

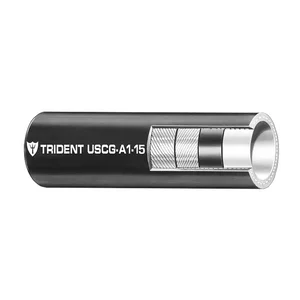

Construction Features:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Boxed Length: 50 ft. (15 m)

Specifications:

• Inner Diameter: (inch) 3/8" / (mm) 9.50
• Outer Diameter: (inch) 0.681 / (mm) 17.3
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 2" / (mm) 50.8
• Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs CE10)

*The #365 series surpasses ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10.

The Trident Marine 3/8" x 50' A1-15 Fuel Line Hose, part number 365-0386, is designed for marine fuel distribution, return, vent, and transfer applications. This hose is suitable for use with various marine fuels, including gasoline (up to 85% ethanol blends) and diesel (up to B100 biodiesel blends). Its construction features a nylon internal barrier and NBR tube, preventing fuel contact with rubber, which contributes to its resistance to fuel permeation and aging. The NBR/PVC blend cover and polyester 2-spiral reinforcement provide durability. With a working pressure of 100 psi and a temperature range of -20�F to 212�F, this hose is intended for IT departments or facilities managers requiring a reliable fuel line solution for marine equipment. It addresses the need for a compliant and robust hose capable of handling modern fuel formulations in marine environments.
