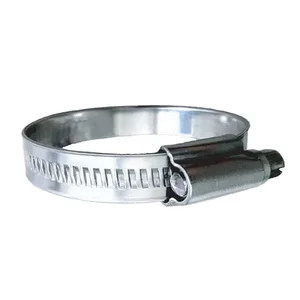

710-1121 - Trident Marine 316 SS Non-Perforated Worm Gear Clamp - Size 28

Trident Marine 316 SS Non-Perforated Worm Gear Clamp - Size 28

This premium marine-grade hose clamp features a high tensile strength construction, made entirely from AISI 316 stainless steel. With a 15/32" wide non-perforated band, it provides a smooth interior surface that minimizes hose damage while increasing clamping force. The robust, one-piece housing offers an exceptional clamping force rating, making it ideal for a variety of marine applications.

Features:

• Screw head size is 7mm for easy adjustment
• Long-lasting, reliable performance for general-purpose hose connections

Recommendations:

• Always measure the hose's outer diameter to ensure the right fit
• For critical applications, consider double clamping on each hose end
• Explore our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses

Construction:

• Band & Housing: Made from 316 Stainless Steel, 11.7 mm wide band, 0.9 mm thick
• Screw Drive: 316 Stainless Steel with a 7.0 mm screw head

Specifications:

• SAE Size: 28
• Hose Inner Diameter: 1-1/2" - 1-5/8"
• Clamping Range: 1-3/4" – 2-1/4" (44-56 mm)
• Recommended Torque: 45-60 inch lbs

The Trident Marine 316 SS Non-Perforated Worm Gear Clamp, part number 710-1121, is designed for secure hose connections in various applications requiring corrosion resistance and reliable clamping. Constructed entirely from AISI 316 stainless steel, this clamp features an 11.7 mm wide, 0.9 mm thick non-perforated band. This design provides a smooth interior surface to minimize potential hose damage while distributing clamping force effectively. The robust, one-piece housing contributes to an exceptional clamping force rating, suitable for general-purpose hose connections. With a 7mm screw head, adjustments are straightforward. This clamp is intended for IT and facilities managers or maintenance personnel who require durable, marine-grade hardware for environments where standard clamps may not suffice, ensuring long-lasting performance for critical hose connections with an outer diameter between 1-3/4" and 2-1/4".
