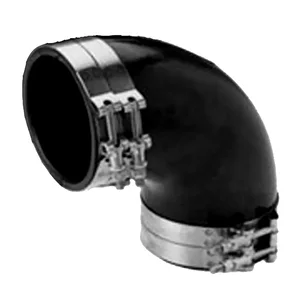

TRL-390-S - Trident Marine 3" ID Black Rubber 90-Degree Exhaust Elbow with Clamps

3" ID Black Rubber 90-Degree Exhaust Elbow with T-Bolt Clamps

This high-quality molded elbow is designed for use in marine wet exhaust systems. Made from durable EPDM rubber, it provides a smooth bore for optimal flow and resistance to harsh marine environments.

Product Highlights:

• Includes four stainless steel T-bolt clamps for secure installation.
• Exceptional resistance to ozone, salt water, and temperature extremes.
• Complies with SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards.
• Constructed from high-temperature EPDM rubber.

Specifications:

• Inner Diameter: 3 inches (76.2 mm)
• A: 5.25 inches (133 mm)
• B: 5.25 inches (133 mm)
• C: 1.75 inches (44.4 mm)
• D: 1.75 inches (44.4 mm)
• R: 2 inches (50.8 mm)
• W: 0.25 inches (6.4 mm)
• Elbow Angle: 90 degrees

The Trident Marine 3" ID Black Rubber 90-Degree Exhaust Elbow, part number TRL-390-S/S, is engineered for integration into marine wet exhaust systems. This component is constructed from high-temperature EPDM rubber, designed to withstand ozone, saltwater, and temperature extremes up to 250�F (121�C). Its molded design provides a smooth internal bore, which supports optimal exhaust flow. The elbow includes four stainless steel T-bolt clamps, facilitating a secure installation. This product is suitable for marine maintenance and repair operations requiring a robust, compliant exhaust connection. It adheres to SAE J2006-R1, ABYC, and NMMA P-1 exhaust standards, ensuring compatibility and performance within specified marine applications. This elbow addresses the need for a durable, standard-compliant 90-degree connection in marine exhaust plumbing.
