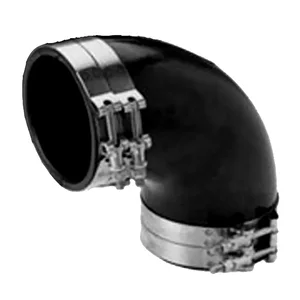

TRL-690-S - Trident Marine Trident 6" ID 90-Degree EPDM Black Rubber Exhaust Elbow

6" ID 90-Degree EPDM Black Rubber Exhaust Elbow

The Trident 6" ID 90-Degree EPDM Exhaust Elbow is designed for marine applications, molded from high-temperature EPDM rubber. It features a smooth bore with external reinforcing ribs for durability. This elbow ensures optimal resistance against ozone, salt water, diesel fumes, and extreme temperature variations.

Key Features:

• Includes four stainless steel T-bolt clamps
• Superior resistance to environmental factors
• Meets SAE J2006-R1 and ABYC & NMMA P-1 exhaust standards
• Constructed from high-temperature black EPDM rubber

Construction Details:

• Color: Black
• Reinforcement: Ribs on 6” I.D. and larger
• Temperature Range: Up to 250°F (121°C)

Specifications:

• Inner Diameter: (inch) 6” / (mm) 152.4
• A: (inch) 7" / (mm) 178
• B: (inch) 7” / (mm) 178
• C: (inch) 2.25” / (mm) 57
• D: (inch) 2.25” / (mm) 57
• R: (inch) 1.75” / (mm) 44.4
• W: (inch) 0.25” / (mm) 6.4
• Elbow Degree: 90 degrees
