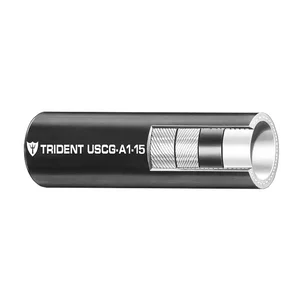

365-0386-FT - Trident Marine A1-15 Low Permeation Fuel Hose - 3/8"

Trident Marine A1-15 Low Permeation Fuel Hose - 3/8" - Sold by the Foot

This high-quality 3/8" low permeation fuel line is designed for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). It features a unique barrier lining that prevents fuel from coming into direct contact with the rubber, ensuring superior performance and longevity.

Key Benefits:

• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone.
• Excellent bendability for easy installation.
• NMMA Type Accepted and CE certified for reliability.

Ideal Applications:

• Marine fuel hose for distribution, return, vent, and transfer needs.
• Suitable for all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel.

Construction Details:

• Inner Tube: Nylon Internal Barrier and NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner Diameter: 3/8" (9.50 mm)
• Outer Diameter: 0.681" (17.3 mm)
• Burst Pressure: 400 psi (2.76 mpa)
• Working Pressure: 100 psi (0.69 mpa)
• Bend Radius: 2" (50.8 mm)
• Weight: 15.6 lb/100 ft. (0.233 kg/m)
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series complies with ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and is EPA Certified for low permeation (Type A1-10).

The Trident Marine A1-15 Low Permeation Fuel Hose, part number 365-0386-FT, is a 3/8-inch diameter fuel line designed for marine applications. This product is suitable for IT and facilities managers overseeing marine fleets or industrial equipment requiring robust fuel transfer solutions. It addresses the need for a durable hose capable of handling various fuel types, including gasoline (up to 85% ethanol blends) and diesel (up to B100 biodiesel blends).

Its construction includes a nylon internal barrier and NBR inner tube, reinforced with a polyester two-spiral layer, and an NBR/PVC blend cover. This design provides resistance to fuel permeation, aging, fire, heat, cold, and ozone, contributing to system longevity and reliability. The hose is NMMA Type Accepted and CE certified, indicating compliance with relevant safety and performance standards. It is intended for fuel distribution, return, vent, and transfer lines within marine environments, offering a working pressure of 100 psi and a bend radius of 2 inches for installation flexibility.
