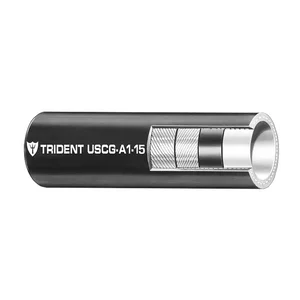

365-0566 - Trident Marine Trident 5/16" x 50' A1-15 Low Permeation Fuel Hose

5/16" x 50' A1-15 Low Permeation Fuel Hose

This Trident Barrier Lined A1-15 Fuel Hose is designed for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). Engineered with a top-quality fuel, fire, and age-resistant formulation, it features a unique "Barrier Liner" on the inner surface, preventing fuel from coming into direct contact with rubber.

Key Applications:

• Marine Fuel Hose for distribution, return, vent, and transfer applications
• Compatibility with all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Construction Features:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Packaging: Boxed length of 50 ft. (15 m)

Specifications:

• Inner Diameter: 5/16" (7.92 mm)
• Outer Diameter: 0.611" (15.5 mm)
• Burst Pressure: 400 psi (2.76 mpa)
• Working Pressure: 100 psi (0.69 mpa)
• Bend Radius: 1.75" (44.5 mm)
• Weight: 13.3 lb/100 ft. (0.198 kg/m)
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*This series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008, and is EPA Certified as a low permeation Type A1-10.

The Trident 5/16" x 50' A1-15 Low Permeation Fuel Hose is a specialized component for marine fuel systems. This hose is designed for distribution, return, vent, and transfer applications, accommodating a range of marine fuels including gasoline (up to 85% ethanol blends), diesel (up to B100 biodiesel blends), and alcohol blends (CE-10). Its construction features a nylon internal barrier and NBR tube, preventing direct fuel contact with rubber, which contributes to its low permeation rate and resistance to aging. The NBR/PVC blend cover and polyester two-spiral reinforcement enhance its durability and flexibility. With a working pressure of 100 psi and a burst pressure of 400 psi, it operates within a temperature range of -20�F to 212�F. The 50-foot boxed length, part number 365-0566, is suitable for IT hardware resellers supporting marine industry clients requiring compliant and reliable fuel line components.
