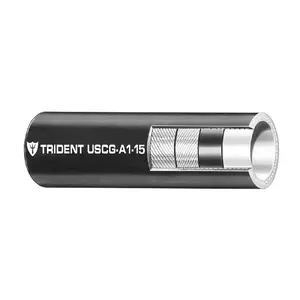

365-0566-FT - Trident Marine 5/16" Low Permeation A1-15 Marine Fuel Hose - Black

5/16" Low Permeation A1-15 Marine Fuel Hose - Black

The Trident Barrier Lined A1-15 Fuel Hose is suitable for both gasoline (including ethanol blends up to 85%) and diesel (including biodiesel blends up to B100). Engineered with a superior formulation resistant to fuel, fire, and aging, this hose features a unique "Barrier Liner" that prevents fuel from direct contact with rubber, enhancing durability and performance.

Applications:

• Marine Fuel Hose (distribution, return, vent, and transfer)
• Compatible with all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

Specifications:

• Inner Diameter: (inch) 5/16" | (mm) 7.92
• Outer Diameter: (inch) 0.611 | (mm) 15.5
• Burst Pressure: (psi) 400 | (mpa) 2.76
• Working Pressure: (psi) 100 | (mpa) 0.69
• Bend Radius: (inch) 1.75" | (mm) 44.5
• Weight: (lb/100 ft.) 13.3 | (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

The Trident Barrier Lined A1-15 Marine Fuel Hose, part number 365-0566-FT, is a specialized component for marine fuel systems. This 5/16" inner diameter hose is designed for distribution, return, vent, and transfer applications in marine environments. It is constructed with a unique barrier liner that prevents direct fuel contact with the rubber, contributing to its durability and resistance to aging. The hose is compatible with a range of marine fuels, including gasoline (up to 85% ethanol blends), diesel (up to B100 biodiesel blends), and alcohol blends (CE-10). Its formulation provides resistance to fuel permeation and fire, making it suitable for demanding marine conditions. With a working pressure of 100 psi and a burst pressure of 400 psi, this hose offers a reliable solution for maintaining fuel system integrity on marine vessels. It is NMMA Type Accepted and CE certified.
