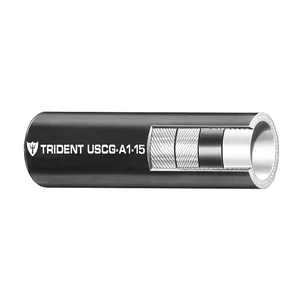

365-0560-FT - Trident Marine Low Permeation A1-15 Fuel Line Hose - 5/16"

Trident Marine Low Permeation A1-15 Fuel Line Hose - 5/16" - Sold by the Foot

This A1-15 rated fuel hose is designed for marine applications, providing optimal performance with gasoline (including ethanol blends) and diesel fuels. Its unique barrier-lined construction prevents fuel from coming into direct contact with the hose material, ensuring durability and safety.

Key Features:

• Sold by the foot to suit your specific length needs.
• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone.
• Flexible design allows for easy installation and movement.
• NMMA Type Accepted and CE certified for quality assurance.

Applications:

• Ideal for marine fuel distribution, return, venting, and transfer.
• Compatible with various marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel.

Construction Details:

• Inner Tube: Nylon Internal Barrier, NBR.
• Outer Cover: NBR/PVC Blend.
• Reinforcement: Polyester with 2 spiral layers.
• Temperature Range: -20°F to 212°F (-28°C to 100°C).
• Available in a 250 ft. reel, sold by the foot.

Specifications:

• Inner Diameter: 5/16" (7.92 mm).
• Outer Diameter: 0.611" (15.5 mm).
• Burst Pressure: 400 psi (2.76 mpa).
• Working Pressure: 100 psi (0.69 mpa).
• Bend Radius: 1.75" (44.5 mm).
• Weight: 13.3 lb/100 ft. (0.198 kg/m).
• Permeation Rate: <10 g/m²/24 hrs (complying with CE10).

Note: This product exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and is EPA Certified for low permeation Type A1-10.

The Trident Marine Low Permeation A1-15 Fuel Line Hose, part number 365-0560-FT, is a specialized component for marine fuel systems. This 5/16" inner diameter hose is engineered for use with gasoline (including ethanol blends) and diesel fuels, making it suitable for a range of marine vessels. Its construction features an internal nylon barrier and NBR inner tube, reinforced with two spiral layers of polyester, and an NBR/PVC blend outer cover. This design is intended to prevent fuel permeation, resist aging, and withstand environmental factors such as fire, heat, cold, and ozone. The hose is sold by the foot, allowing for custom length installations in fuel distribution, return, venting, and transfer applications. It is designed for IT and marine maintenance professionals requiring a certified fuel line that meets NMMA Type Accepted and CE standards for durability and safety in marine environments.
