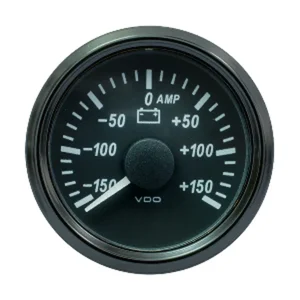

A2C3833060030 - Vdo SingleViu 52mm (2-1/16") Ammeter - 150 AMP

VDO SingleViu 52mm (2-1/16") Ammeter - 150 AMP

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

*60mV Shunt Required

Features:

• 60mV Default Input
• RGB LED Illumination (default illumination set to White)
• Water Resistant Front & Rear
• Includes Wire Harness
• Voltage 12-24V
• Molex MX 150 8 Pin Connector
• Spin-Lok™ Mounting Hardware
• Analog Input

∗Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO SingleViu 52mm (2-1/16") 150 AMP Ammeter is designed for IT and industrial applications requiring precise current monitoring. This instrument offers dual-input capability, allowing it to function with traditional analog senders or integrate directly into a J1939 CAN network. Its microprocessor-based design enables switching between analog and J1939 CAN inputs via the SingleViu Configuration software. The ammeter features water-resistant front and rear construction, RGB LED illumination (defaulting to white), and advanced stepper motors for reliable operation. It operates on 12-24V systems and includes a wire harness with a Molex MX 150 8 Pin Connector and Spin-Lok� Mounting Hardware. A 60mV shunt is required for operation. This ammeter, part number A2C3833060030, is suitable for environments where robust and adaptable current measurement is necessary.
