A2C3833340030 - Vdo SingleViu 52mm (2-1/16) Water Temperature Gauge - 250°F - 450-30 Ohm

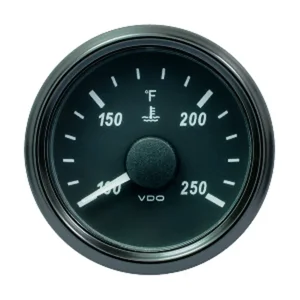

SingleViu 52mm (2-1/16") Water Temperature Gauge - 250°F - 450-30 Ohm

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

*450 - 30 Ohm Sender Required

Features:

• 450-30Ω Default Input
• RGB LED Illumination (default illumination set to White)
• Water Resistant Front & Rear
• Includes Wire Harness
• Molex MX 150 8 Pin Connector
• Voltage 12-24V
• Spin-Lok™ Mounting Hardware
• Analog Input

∗Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO SingleViu 52mm Water Temperature Gauge, part number A2C3833340030, is designed for monitoring water temperature up to 250�F. This instrument features a dual-input capability, allowing it to operate with traditional analog senders or directly integrate into a J1939 CAN network. Its default input is 450-30 Ohm, but it can be reconfigured for J1939 CAN via the SingleViu Configuration software. Each gauge incorporates its own microprocessor, supporting this input flexibility. The unit is constructed to be water and fog resistant, suitable for demanding environments. It includes RGB LED illumination, with a default white setting, and advanced stepper motors for reliable operation. This gauge is intended for applications requiring a robust and adaptable solution for temperature monitoring, particularly where both analog and CAN network compatibility are beneficial. It operates on 12-24V systems and comes with a wire harness and Spin-Lok� mounting hardware.
