CW61653 - Vdo Reed Switch Fuel Sender - 600 MM

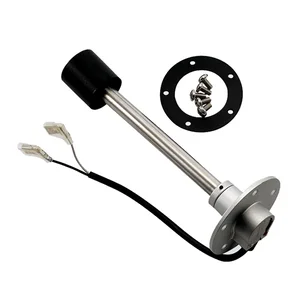

Reed Switch Fuel Sender - 600 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 23.6" (600mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender (part number CW61653) is designed for accurate fuel level measurement in tanks up to 23.6 inches (600mm) deep. This unit utilizes a tubular, floatless design, which can be beneficial in applications where traditional swing-arm senders encounter clearance issues or produce erratic readings due to fuel slosh. Its construction includes stainless steel and an ethanol-resistant Viton gasket, contributing to durability. The sender connects via insulated 1/4" spade connectors and features a standard SAE 5-hole mounting flange for top-mounted installation. It operates within a 240-33 Ohm range, making it compatible with most standard marine fuel gauges. This product is suitable for IT and operations managers seeking a reliable fuel level sensing solution for fleet vehicles, industrial equipment, or marine applications where consistent and stable readings are critical.
