226-633 - Vdo Reed Switch Fuel Sender - 330 MM

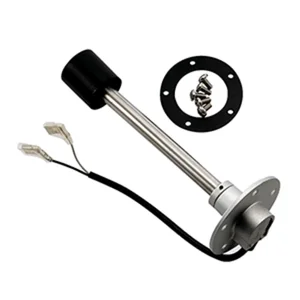

Reed Switch Fuel Sender - 330 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 12.9" (330mm)
• Insulated 1/4" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender (part number 226-633) is a top-mounted fuel level sensor designed for applications where traditional swing-arm senders may not be suitable due to clearance constraints. This unit utilizes a tubular, floatless design, which helps to dampen fuel slosh and stabilize gauge readings, addressing erratic pointer movements common with resistance card-based senders. Constructed from stainless steel with an ethanol-resistant Viton gasket, it offers durability for various fuel types. It features a standard SAE 5-hole mounting flange, making it compatible with many aftermarket fuel tanks and gauges. The sender provides a 240-33 Ohm output range and is designed for tanks with a depth of 12.9 inches (330mm). Its insulated 1/4" spade connectors facilitate electrical integration, and it operates with a floating ground. This product is intended for IT and industrial buyers seeking a reliable, low-maintenance fuel level sensing solution that minimizes wear from moving parts.
