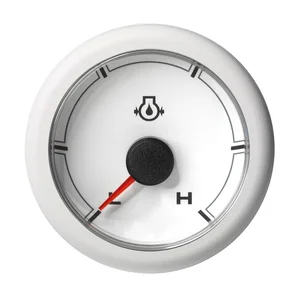

A2C1066030001 - Veratron OceanLink 52MM Engine Oil Pressure Gauge - 150 PSI White

OceanLink 52MM Engine Oil Pressure Gauge - Low/High (150 PSI) - White Dial

The OceanLink 52MM Vessel Status Gauge connects seamlessly to any OceanLink Master unit using the patented EasyLink serial bus connection. You can daisy-chain up to 16 EasyLink gauges to your Tachometer or GPS Speedometer.

Featuring an interchangeable bezel option, this gauge combines functionality with aesthetic appeal.

Key Features:

• AMP Superseal Easylink connectivity
• 270° pointer deflection angle for precision
• Reverse polarity protection for safety
• Anti-fog double lens for clear visibility
• IPX5 front & rear protection rating
• Operating temperature range: -20 °C to +70 °C
• Nominal voltage: 12/24V
• Hole diameter: 52MM

Included in the Box:

• Gauge
• Bezel
• Rubber Seal
• Spinlock
• Installation Instructions
• Safety Instructions

*Sold individually.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

The Veratron OceanLink 52MM Engine Oil Pressure Gauge, part number A2C1066030001, provides real-time oil pressure monitoring up to 150 PSI. This white dial gauge is designed for integration into marine or industrial control panels requiring a 52MM diameter cutout. It connects to an OceanLink Master unit via an EasyLink serial bus, allowing up to 16 EasyLink gauges to be daisy-chained to a compatible tachometer or GPS speedometer. Key features include AMP Superseal EasyLink connectivity, reverse polarity protection, and an anti-fog double lens for clear visibility in varying conditions. With an IPX5 front and rear protection rating and an operating temperature range of -20 �C to +70 �C, this gauge is suitable for environments requiring robust instrumentation. It operates on 12/24V nominal voltage and offers a 270� pointer deflection for precise readings. This unit is intended for IT and operations managers overseeing systems where reliable engine oil pressure data is critical for preventative maintenance and operational safety.
