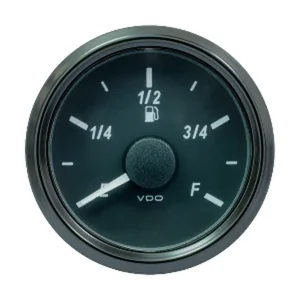

SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm
SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.
*240 - 33 Ohm Sender Required.
Features:
∗Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO SingleViu 52mm (2-1/16") Fuel Level Gauge, part number A2C3833130030, is designed for systems requiring a reliable fuel level indicator. This instrument features a dual-input capability, allowing it to operate with traditional analog senders or integrate directly into a J1939 CAN network. Its default input is set for 240-33 Ohm senders, which are required for analog operation. Each gauge includes a microprocessor, enabling the input to be switched from analog to J1939 CAN using the SingleViu Configuration software. The unit is constructed to be water-resistant on both the front and rear, and it incorporates RGB LED illumination, defaulting to white. It operates on 12-24V systems and comes with a wire harness and Spin-Lok mounting hardware. This gauge is suitable for applications where a robust, adaptable fuel level display is needed, offering flexibility for both legacy and modern system integrations.
SingleViu 52mm (2-1/16) Fuel Level Gauge - E/F Scale 240-33 Ohm
SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.
These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.
*240 - 33 Ohm Sender Required.
Features:
This VDO SingleViu fuel level gauge requires a 240-33 Ohm sender for analog input. A compatible sender is necessary for the gauge to function correctly in analog mode.
Yes, this gauge has dual-input capability. While its default is analog, it can be switched to operate directly off a J1939 CAN network using the SingleViu Configuration software.
The gauge includes a wire harness with a Molex MX 150 8 Pin Connector and Spin-Lok mounting hardware. It is sold as an individual unit.
This VDO SingleViu fuel level gauge is designed to operate within a voltage range of 12-24V, making it suitable for various vehicle and equipment electrical systems.
A2C3833130030 - Vdo SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm
