A2C3833160030 - Vdo SingleViu 52mm (2-1/16") Oil Pressure Gauge - 5 Bar - 0-180 Ohm

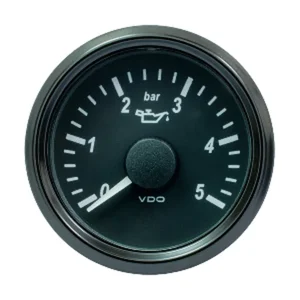

SingleViu 52mm (2-1/16") Oil Pressure Gauge - 5 Bar - 0-180 Ohm

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

*0 - 180 Ohm Sender Required

Features:

• 10-184 Ω Default Input
• RGB LED Illumination (default illumination set to White)
• Water Resistant Front & Rear
• Includes Wire Harness
• Voltage 12-24V
• Molex MX 150 8 Pin Connector
• Spin-Lok™ Mounting Hardware
• Analog Input

∗Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO SingleViu 52mm (2-1/16") Oil Pressure Gauge is designed for monitoring oil pressure in various applications, offering a 5 Bar measurement range. This instrument features a dual-input capability, allowing it to function with traditional analog senders (requiring a 0-180 Ohm sender) or integrate directly into a J1939 CAN network. The input type can be switched via the SingleViu Configuration software. Each gauge incorporates a microprocessor and advanced stepper motors for reliable operation. Constructed for durability, it features water-resistant front and rear components and RGB LED illumination, with a default white setting. This gauge is suitable for environments where robust and flexible oil pressure monitoring is required, supporting both 12V and 24V systems. The part number for this specific unit is A2C3833160030, and it includes a wire harness and Spin-Lok� mounting hardware for installation.
