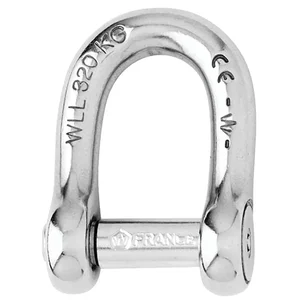

01306 - Wichard Marine Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"

Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 4580 / (kg) 2080
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.412 / (g) 187

Dimensions:

• A: (inch) 1-21/32" / (mm) 42
• B: (inch) 1-1/16" / (mm) 27
• C: (inch) 15/32" / (mm) 12
• D: (inch) 15/16" / (mm) 24
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 25/64" / (mm) 10
• F: (inch) 2-7/8" / (mm) 73
• G: (inch) 1-59/64" / (mm) 49

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine 01306 Self-Locking Allen Head Pin D Shackle is a hardware component designed for secure linking in demanding environments. Constructed from grade 316L stainless steel, this shackle features a self-locking allen head pin that integrates flush with the shackle body, mitigating snagging risks. The pin's design also prevents loosening due to vibrations, contributing to stable connections.

This shackle is suitable for applications requiring reliable load bearing, with a Working Load Limit (WLL) of 2640 lb (1200 kg) for industrial use and a Working Load (WL) of 4580 lb (2080 kg) for nautical applications. Its 12mm (15/32") diameter pin and robust construction make it appropriate for linking chains and anchors, or for use on halyards where minimizing clutter and preventing sail damage are priorities. This component is intended for IT and industrial buyers who require durable, secure fastening solutions for relevant operational contexts.
