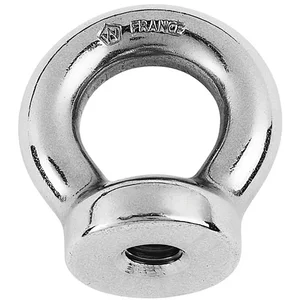

06345 - Wichard Marine Wichard M10 x 150mm Eye Nut - 8mm Forged Stainless Steel

8mm Eye Nut - Thread M10 x 150mm

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 9920 / (kg) 4500
• Weight: (lb) 0.108 / (g) 49

Dimensions:

• A: (mm) M10 x 150
• B: (inch) 43/64" / (mm) 17
• C: (inch) 1 27/64" / (mm) 36
• D: (inch) 5/16" / (mm) 8
• E: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard M10 x 150mm Eye Nut, part number 06345, is an 8mm forged stainless steel fastening component designed for demanding applications. Constructed from 316L stainless steel, this eye nut provides durability and strength for secure attachment points. It is suitable for high-performance fastening, including towing applications and securing waterskiing lines. With a breaking load of 9920 lb (4500 kg), it offers a robust solution for creating secure connections where reliable performance is critical. Its single-piece forged construction enhances overall strength, making it appropriate for environments requiring high load capacity and resistance to corrosion. This component addresses the need for a durable, high-strength threaded fastener in various industrial and nautical settings.
