6645W - Wichard Marine Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

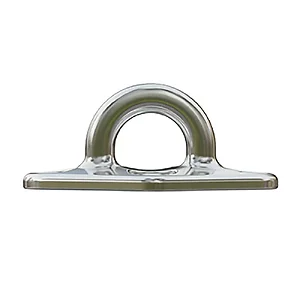

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M6 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 6393.4 / (kg) 2900
• Breaking Load: (lb) 17196 / (kg) 7800
• Weight: (lb) 0.315 / (g) 143
• W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
• W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
• W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
• B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
• B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
• B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

Dimensions:

• A: (inch) 3 7/64" / (mm) 79
• B: (inch) 2 23/64" / (mm) 60
• C: (inch) 1 31/32" / (mm) 50
• D: (inch) 1 17/64" / (mm) 32
• E: (inch) 47/64" / (mm) 18.5
• F: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Diamond Pad Eye, part number 6645W, is a round fastening component designed for applications requiring high mechanical and corrosion resistance. Constructed from Duplex stainless steel, this pad eye is engineered for durability in demanding environments. It features optimized dimensions for integration with M6 screws, making it suitable for various securement tasks. Typical applications include mast foot blocks, reefing blocks, and other general fastenings where a robust anchor point is needed.

This product is intended for IT hardware resellers serving clients who require reliable, high-load attachment points in specialized industrial or marine settings, rather than standard IT infrastructure. It addresses the need for a durable fastening solution capable of withstanding significant working loads, such as 2900 kg (6393.4 lb) at 90 degrees, and a breaking load of 7800 kg (17196 lb) at 90 degrees. Its design prioritizes a strong mechanical resistance to corrosion ratio, ensuring long-term performance.
