6525W - Wichard Marine Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.489 / (g) 222

Dimensions:

• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 2 9/16" / (mm) 65
• D diameter: (inch) 25/64" / (mm) 10
• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

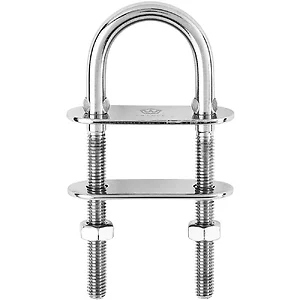

The Wichard U-Bolt Pad Eye, part number 6525W, is a specialized fastening component designed for demanding applications requiring secure attachment points. Constructed from entirely drop-forged 316L stainless steel, this pad eye offers a 10mm (25/64") diameter and a 110mm (4-21/64") length. It is engineered to provide reliable working and breaking loads, making it suitable for various fastening needs, including shrouds, lifelines, and blocks. The product is delivered with all necessary bolts and a counter-plate for installation, and it supports a maximum tightening torque of 36 Nm. This U-bolt pad eye is intended for IT hardware resellers supporting clients in industrial or marine environments where robust, high-strength fastening solutions are critical for equipment stability and safety.
