01305 - Wichard Marine Wichard Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"

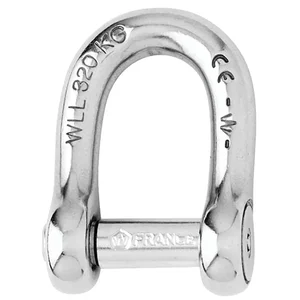

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal for linking chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• WLL: (lb) 1890 / (kg) 860
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.218 / (g) 99

Dimensions:

• A: (inch) 1 19/64" / (mm) 33
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 3/4" / (mm) 19
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 23/64" / (mm) 9
• F: (inch) 2 1/4" / (mm) 57
• G: (inch) 1 39/64" / (mm) 41

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

The Wichard Self-Locking Allen Head Pin D Shackle (part number 01305) is a robust connecting component designed for secure linking in demanding environments. Constructed from grade 316L stainless steel, this D shackle features a self-locking Allen head pin that minimizes the risk of accidental opening, even under vibration. Its flush pin design helps prevent snagging, making it suitable for applications where reduced clutter is important. With a working load of 3170 lb (1440 kg) for nautical use and a Working Load Limit (WLL) of 1890 lb (860 kg) for industrial applications, it offers reliable performance for linking chains, anchors, or protecting sails on halyards. This shackle is CE marked and certified for industrial lifting, addressing the need for durable and secure connections in both marine and industrial settings.
