06513 - Wichard Marine Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.132 / (g) 60

Dimensions:

• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 3/8" / (mm) 35
• D diameter: (inch) 15/64" / (mm) 6
• Length: (inch) 2 3/4" / (mm) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

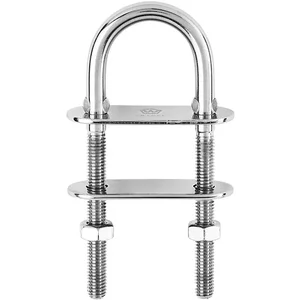

The Wichard U-Bolt Pad Eye, part number 06513, is a heavy-duty fastening component designed for secure attachment points in demanding environments. Constructed from 316L stainless steel, this pad eye is engineered for durability and resistance to corrosion. It features a 6mm (15/64") diameter and a 70mm (2-3/4") length, providing a robust anchor point capable of supporting substantial loads. With a working load of 2820 lb (1280 kg) and a breaking load of 6610 lb (3000 kg), it is suitable for applications requiring high strength and reliability. This product is intended for IT hardware resellers serving clients in industrial or marine sectors where secure mounting of equipment, cabling, or other components is critical. It includes the necessary bolts and a counter-plate for installation, with a recommended maximum tightening torque of 7.5 Nm. This U-bolt pad eye addresses the need for a dependable, high-capacity fastening solution in harsh conditions.
