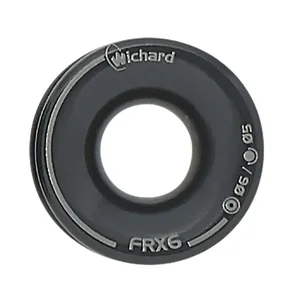

Wichard Marine FRX6 / 20705 Wichard FRX6 7mm Friction Ring for Heavy Loads

Wichard FRX6 Friction Ring - 7mm (9/32")

The Wichard FRX6 Friction Ring is designed for high efficiency and strength, ideal for heavy loads and semi-static lines. This lightweight thimble is perfect for applications that require smooth line performance with minimal wear. Its hard anodized finish ensures a longer lifespan, making it a reliable choice for both nautical and industrial uses.

Applications:

• Mast-foot block
• Barber-hauler
• Inhauler
• Loop
• Thimble
• Lazy jack
• Running backstay
• Tackles and more

Specifications:

• Materials: Anodized aluminium
• Working load: 880 lb (400 kg)
• Weight: 0.004 lb (2 g)
• A: 7/32" (5.5 mm)
• B: 9/32" (7 mm)
• C: 23/64" (9 mm)
• D diameter: 45/64" (18 mm)

Note: The Working Load (WL) is recommended for nautical applications, while the Working Load Limit (WLL) is intended for industrial applications only. The safety factor is five times the breaking load, calculated as WLL = Breaking load / 5.

*Sold as an individual unit.
