A2K-MPT-2 - Actisense NMEA2000 Power T-Piece 3M

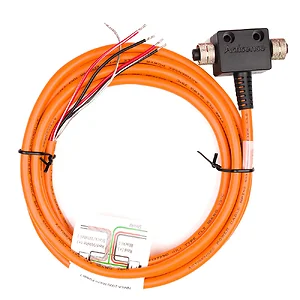

Actisense NMEA2000 Power T-Piece 3M

The Actisense A2K-MPT-2 offers a straightforward and secure approach to powering your NMEA 2000 network. Designed for ease of use, it features improved strain relief and micro-fit connectors that allow for 'plug and play' installations.

With two female connectors, this power T-piece is fully compatible with Devicenet standards. The UL certified, three-meter cable provides flexibility in installation and ensures a reliable connection.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)
• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated
• Contact Carrier - PA66 (30% Glass Filled), Black
• Contact Polarization - Standard M12 - �A� polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, black
• Housing - PVC, black
• Cable Jacket Material - 0.8mm Nom. PVC, orange
• Cable Outer Diameter - 6.7mm �0.254mm
• Cable Length - 3M
• Wire Length - 100mm (7mm stripped)
• Wire Jacket - PVC
• Wires - 18 AWG (stripped and tinned)
• Drain - 18 AWG (34-strand tinned copper)
• Shield - Al-mylar
• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -20�C to +70�C
• Storage Temperature - -40�C to +85�C

The Actisense NMEA2000 Power T-Piece 3M, part number A2K-MPT-2, is a power cable and connector designed to integrate power into an NMEA 2000 network. This component is suitable for IT professionals and system integrators managing marine or industrial networks that utilize the NMEA 2000 standard. It provides a secure and straightforward method for network power distribution, featuring micro-fit connectors for plug-and-play installation and improved strain relief for enhanced durability. The T-piece includes two female connectors, ensuring compatibility with Devicenet standards. Its UL certified, three-meter cable offers flexibility in system layout, while an IP67 rating ensures protection against water and dust when mated. This product addresses the need for reliable and compliant power delivery within NMEA 2000 environments, supporting stable network operation across a wide operating temperature range.
