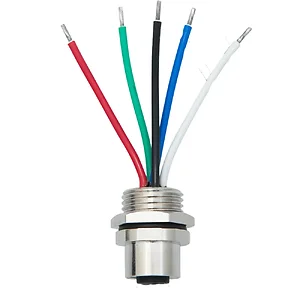

A2K-PMW-F - Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated
• Contact Carrier - Nylon & GF
• Contact Polarization - Standard M12-"A"-Polarization
• Mating Thread - M12
• Housing - Brass, nickel-plated
• Mounting Thread - PG9
• Mounting Nut - Brass, nickel plated - PG9
• Mounting Hole Diameter - 15.3mm
• Wires - 18 AWG (stripped and tinned)
• Wire Jacket - PVC
• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25°C to +90°C
• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female connector facilitates NMEA 2000 network installations through bulkheads or panels. This component is designed for IT professionals and system integrators who require a reliable, watertight pass-through for NMEA 2000 cabling in marine or industrial environments. It enables the creation of a quick-pluggable NMEA 2000 connection point, suitable for applications where equipment needs to be connected or disconnected without compromising system integrity. The A2K-PMW-F connector features IP67 protection when mated, ensuring resistance to water ingress. It is constructed with brass, gold-plated contacts and a nickel-plated brass housing for durability, and includes 18 AWG wires for direct integration. This product addresses the need for secure, maintainable NMEA 2000 network segmentation across physical barriers.
