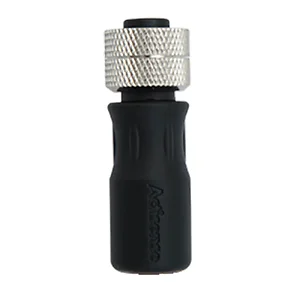

A2K-TER-F - Actisense NMEA2000 Female Terminator

Actisense NMEA2000 Female Terminator

This NMEA2000 Micro Terminator is built to endure the challenging marine environment, ensuring reliability and ease of installation. It is essential for every NMEA 2000 setup to have exactly two terminators, one located at each end of the backbone to maintain optimal performance and signal clarity.

The Actisense line of NMEA 2000 connectors and cables is designed with expert knowledge of interconnects and NMEA protocols.

Technical Specifications:

• Rated Voltage (Power Pair): 60VDC
• Rated Current: 4A
• Internal Termination Resistors: 120 Ω ± 1%, 500mW

Mechanical Features:

• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PA66 (30% Glass filled), black
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, black
• Housing: PVC, black
• Weight: 15g

Approvals and Certifications:

• Protection: IP67 (when mated)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C

The Actisense NMEA2000 Female Terminator (A2K-TER-F) is a specialized component designed for NMEA 2000 network installations. This terminator is essential for establishing and maintaining signal integrity within an NMEA 2000 backbone. Each NMEA 2000 setup requires exactly two terminators, positioned at opposite ends of the network backbone, to ensure proper signal reflection and prevent data corruption. Built with a robust design, it features a phosphor bronze, gold-plated female contact, a PA66 (30% Glass filled) contact carrier, and a brass, nickel-plated screw cap. The unit is IP67 rated when mated, providing protection against water and dust ingress in demanding environments, such as marine applications. It operates effectively across a temperature range of -25�C to +70�C. This product is suitable for IT professionals and integrators responsible for deploying or maintaining NMEA 2000 networks, offering a reliable solution for proper network termination.
