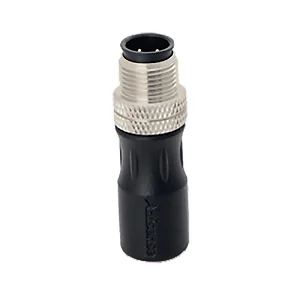

A2K-TER-M - Actisense NMEA2000 Male Micro Terminator

NMEA2000 Male Micro Terminator

The Actisense Micro Terminator is engineered for superior performance in harsh marine environments. With robust construction and easy installation, it ensures the integrity of your NMEA 2000 network.

Each NMEA 2000 system must incorporate two termination resistors at the ends of the backbone, allowing optimal operation and signal clarity. The Actisense lineup of connectors and cables is crafted with extensive expertise in interconnect solutions and NMEA standards.

Technical Specifications:

Electrical:

• Rated Voltage (power pair): 60VDC
• Rated Current: 4A
• Internal Termination Resistors: 120 ? � 1% 500mW

Mechanical:

• Male Contact: Brass, gold plated
• Contact Carrier: PA66 (30% Glass filled), black
• Contact Polarization: Standard M12 - �A�- polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, Black
• Housing: PVC, black
• Weight: 15g

Approvals and Certifications:

• Protection: IP67 (when mated)
• Operating Temperature: -25�C to +70�C
• Storage Temperature: -40�C to +85�C

The Actisense NMEA2000 Male Micro Terminator (A2K-TER-M) is a specialized component designed for NMEA 2000 network installations. This terminator is essential for maintaining signal integrity and optimal operation within an NMEA 2000 system, as each network backbone requires two termination resistors at its ends. It features a male M12 connector with A-polarization and internal 120 ? termination resistors. Constructed with a brass, nickel-plated screw cap, gold-plated brass contacts, and a PVC housing, it is built to withstand demanding conditions. The unit is IP67 rated when mated, offering protection against dust and water ingress. With an operating temperature range of -25�C to +70�C, this terminator is suitable for environments requiring reliable network termination.
