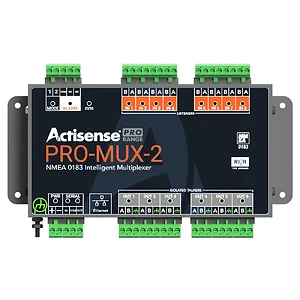

Actisense PRO-MUX-2 Multiplexer

The PRO-MUX-2 is an intelligent NMEA 0183 multiplexer designed for optimal performance on larger leisure vessels and commercial shipping. It features a rugged stainless steel housing complemented by complete isolation on all inputs and outputs. With eight OPTO-isolated NMEA 0183 inputs, six ISO-Drive isolated outputs, a bi-directional serial port, and an Ethernet port, this device enhances network customization and device protection.

This multiplexer allows the routing of any input to any output, providing incredible flexibility for managing multiple instruments' data. Typical uses include integrating several GPS, AIS, wind, and depth devices on a single connection to a display or NMEA 2000 system using an NGX converter.

Users benefit from advanced filtering and monitoring capabilities, enabling detailed control over instrument data. Configuration is straightforward using Actisense software, accessible via a standard web browser without compatibility issues.

The Actisense PRO-MUX-2 is an NMEA 0183 multiplexer engineered for integration within larger leisure vessels and commercial shipping environments. This device facilitates the consolidation and routing of NMEA 0183 data from multiple instruments, such as GPS, AIS, wind, and depth sensors. It features eight OPTO-isolated NMEA 0183 inputs and six ISO-Drive isolated outputs, along with a bi-directional serial port and an Ethernet port for enhanced network customization and device protection. The PRO-MUX-2 allows for flexible data management by enabling any input to be routed to any output. It supports advanced filtering and monitoring, providing granular control over instrument data streams. Configuration is performed via a web-based tool, accessible through a standard web browser. The unit is housed in a rugged stainless steel enclosure and offers complete isolation on all inputs and outputs. It is suitable for DIN rail or panel mounting and uses pluggable connectors for installation.
