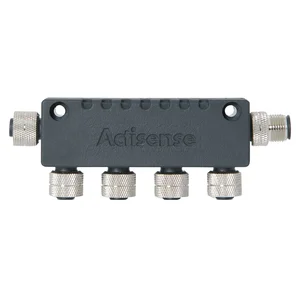

A2K-4WT - Actisense N2K Micro 4 Way T-Piece Connector

N2K Micro 4 Way T-Piece Connector

This Actisense 4 Way T-Piece Connector is designed for applications requiring multiple drops or 'ports' from the NMEA 2000 backbone. It simplifies installation—offering the convenience of a single T-Piece while utilizing less space and being more cost-effective than multiple individual T-pieces.

Developed with extensive expertise in interconnect technology and NMEA standards, the Actisense range ensures reliable and efficient connections.

Specifications:

• Rated Current: 4A
• Rated Voltage: 60V DC
• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PA66 (30% Glass filled), black
• Contact Polarization: Standard M12 - “A” - polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, Black
• Housing: TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield: Copper Foil
• Weight: 105g
• Protection: IP67 (when mated)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

The Actisense N2K Micro 4 Way T-Piece Connector, part number A2K-4WT, is an NMEA 2000 approved component designed to expand network connectivity. This unit is suitable for IT professionals and integrators managing marine or industrial NMEA 2000 networks that require multiple device connections from a single backbone point. It facilitates the creation of up to four drop connections, streamlining installation by consolidating multiple ports into one T-piece. This approach helps optimize space utilization and can be more cost-effective compared to deploying several individual T-pieces. The connector features gold-plated brass and phosphor bronze contacts, a PA66 contact carrier, and an M12 mating thread. Its TPU housing is flame retardant to UL94V-0 and halogen-free, offering IP67 protection when mated. It operates within a temperature range of -20�C to +70�C.
