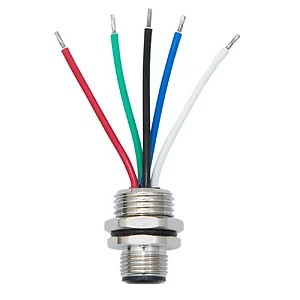

A2K-PMW-M - Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A
• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated
• Contact Carrier - Nylon & GF
• Contact Polarization - Standard M12-"A"-Polarization
• Mating Thread - M12
• Housing - Brass, nickel-plated
• Mounting Thread - PG9
• Mounting Nut - Brass, nickel plated - PG9
• Mounting Hole Diameter - 15.3mm
• Wires - 18 AWG (stripped and tinned)
• Wire Jacket - PVC
• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25°C to +90°C
• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male connector facilitates NMEA 2000 network installations through bulkheads or panels, maintaining system integrity with waterproof seals. This component is designed for IT professionals and integrators managing marine or industrial NMEA 2000 networks where secure, watertight pass-through connections are required. It addresses the challenge of extending NMEA 2000 connectivity across physical barriers without compromising environmental protection. The A2K-PMW-M features brass, gold-plated contacts, a nickel-plated brass housing, and 18 AWG stripped and tinned wires for direct integration. With an IP67 rating when mated, it ensures reliable operation in demanding conditions, supporting rated currents up to 4A and voltages up to 60VDC. Its M12-"A"-Polarization and PG9 mounting thread conform to standard specifications, simplifying installation into a 15.3mm mounting hole.
