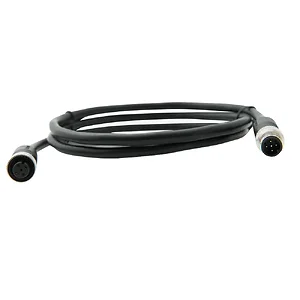

A2K-TDC-4M - Actisense NMEA2000 4M Micro Cable Assembly

NMEA2000 4M Micro Cable Assembly

This 4-meter micro cable assembly is designed for use with NMEA 2000 networks. It serves as a drop cable from a NMEA 2000 backbone or as an extension for the backbone cable itself.

The assembly is crafted with Actisense UL-certified cables, ensuring quality and reliability for marine applications. Featuring five internal wires - power, ground, two data wires, and a drain wire - the design effectively mitigates interference from external sources and minimizes RFI emissions.

It supports a maximum backbone length of 100 meters and allows drop cable lengths up to 6 meters, maintaining optimal network performance. The connectors are constructed with premium materials, guaranteeing durability for long-term use.

Key Technical Specifications:

• Rated Current: 3A
• Rated Voltage: 60VDC
• Mating Thread: M12
• Protection: IP67 (when mated)
• Operating Temperature: -20�C to +70�C
• Storage Temperature: -40�C to +85�C

The Actisense A2K-TDC-4M is a 4-meter micro cable assembly engineered for NMEA 2000 network installations. This interconnect cable functions as either a drop cable to connect devices to a NMEA 2000 backbone or as an extension segment for the backbone itself. It is suitable for marine applications requiring a robust and reliable network connection. The assembly features UL-certified cables and durable connectors, offering IP67 protection when mated, which is critical for environments exposed to moisture. Its five-wire internal construction, including a drain wire, is designed to reduce external interference and RFI emissions, contributing to stable network performance. This cable supports NMEA 2000 networks with a maximum backbone length of 100 meters and individual drop cable lengths up to 6 meters, providing a practical solution for extending or connecting network components.
