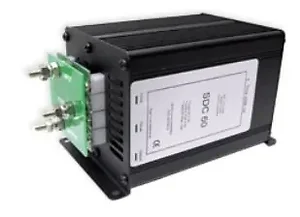

Samlex America SDC-60 60A Non-Isolated DC-DC Converter: 24V to 12V Step-Down

60A Non-Isolated DC-DC Converter: 24V to 12V Step-Down

This high-efficiency switch-mode step-down DC-DC converter transforms a nominal input voltage of 24 VDC (with a range of 20 VDC to 35 VDC) into a finely regulated output of 12 VDC nominal (13.8 VDC) at a maximum of 60 Amps. The SDC-60 model is designed as a non-isolated unit, ideal for negative ground systems, and incorporates numerous safety features such as overload, over-temperature, reverse polarity, and over-voltage protection to ensure reliable operation.

Specifications:

• Input Voltage Range: 20-35 VDC
• Output Voltage: 13.8 VDC
• Maximum Output Current: 60 Amps
• Weight: 2.8 lbs (1.27 kg)
• Dimensions: 5.5 x 3.5 x 3.75 in (14 x 8.9 x 9.5 cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems
