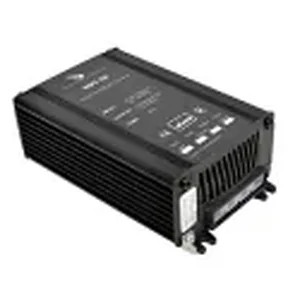

SDC-30 - Samlex America 30A Non-Isolated 24VDC to 12VDC Step-Down Converter

30A Non-Isolated 24VDC to 12VDC Step-Down Converter

This high-efficiency switch-mode step-down DC-DC converter transforms an input voltage of 24 VDC nominal (within a range of 20 VDC to 32 VDC) to a stable output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is designed for non-isolated operation (no galvanic isolation between input and output) and is suitable for use in negative ground systems. Key features include protections against overload, overheating, reverse polarity, and over-voltage conditions.

Applications:

• Earth moving machinery
• Heavy-duty trucks
• Buses
• Marine vessels
• CB radios
• 12 Volt lighting setups
• AM/FM audio systems

NOTE: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For details, visit P65Warnings.ca.gov.

The Samlex America SDC-30 is a non-isolated, switch-mode step-down DC-DC converter designed to transform a 24 VDC nominal input to a stable 12 VDC nominal output at 30 Amps. It accepts an input voltage range of 20 VDC to 32 VDC and provides an output of 13.8 VDC. This unit is suitable for integrating 12-volt equipment into existing 24-volt negative ground systems. It addresses the need for reliable power conversion in environments such as heavy-duty trucks, buses, earth-moving machinery, and marine vessels, enabling the operation of devices like CB radios, 12-volt lighting, and AM/FM audio systems. The converter incorporates protection features against overload, overheating, reverse polarity, and over-voltage conditions, ensuring operational stability and equipment safety.
