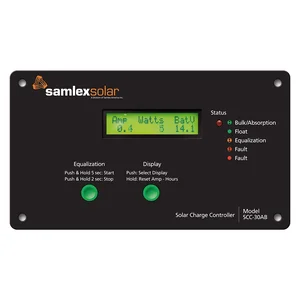

SCC-30AB - Samlex America 30A Flush Mount Solar Charge Controller with LCD Display

30A Flush Mount Solar Charge Controller with LCD Display

This 30 Amp Flush Mount Solar Charge Controller effectively regulates current to protect your batteries from over-charging. Featuring a user-friendly interface with LED status indicators and a digital LCD monitor, this unit is equipped with 8 optimized charging profiles suitable for various battery types. Enhance your charging experience with temperature compensation using the optional DC-BTS-A-C Battery Temperature Sensor.

Key Features:

• Efficient Pulse Width Modulated (PWM) charging technology
• 4-stage battery charging process: Bulk, Absorption, Float, and manual/automatic Equalization
• 8 selectable battery charging profiles for simplified configuration
• Temperature compensated charging available with optional sensor
• Digital LCD Monitor displays operational parameters and fault messages

Specifications:

• Input Voltage: 12V / 24V
• Max Current: 30 Amp
• Weight: 0.8 lbs (0.36 kg)
• Dimensions: 7.5 x 4.25 x 1.5 inches (19.1 x 10.8 x 3.8 cm)
• Warranty: 5 Year Limited

Applications:

• Recreational vehicles
• Service vehicles
• Marine applications
• Fieldwork
• Telecommunications
• Mobile offices
• Construction sites

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

The Samlex America SCC-30AB is a 30 Amp flush mount solar charge controller designed to regulate current flow from solar panels to batteries. This unit is suitable for IT and service vehicle fleets, marine applications, fieldwork, and mobile offices, where reliable battery charging is critical. It employs Pulse Width Modulated (PWM) charging technology and a 4-stage charging process (Bulk, Absorption, Float, and Equalization) to protect batteries from over-charging and optimize their lifespan. The controller features a digital LCD monitor for displaying operational parameters and fault messages, alongside LED status indicators for quick assessment. With 8 selectable battery charging profiles, it accommodates various battery types. An optional DC-BTS-A-C Battery Temperature Sensor can be integrated for temperature-compensated charging, enhancing efficiency in diverse environmental conditions. This controller addresses the need for consistent and protected power management in off-grid or mobile IT setups.
