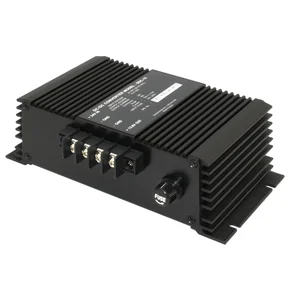

SDC-15 - Samlex America 12A DC Converter - Step-Down 24V to 12V for Heavy Duty

12A DC-DC Converter - Step-Down 24V to 12V for Heavy Duty Applications

This high-efficiency, non-isolated step-down DC-DC converter takes a nominal input voltage of 24 VDC (with a range of 20 VDC to 35 VDC) and converts it to a highly regulated output of 12 VDC nominal (at 13.8 VDC) capable of delivering up to 12 Amps. The SDC-15 model is designed for use in negative ground systems and includes an array of protective features.

Key Features Include:

• Overvoltage and short-circuit protection
• Temperature compensated current limit
• Input-side overvoltage and transient protection
• Input-side reverse polarity protection
• High efficiency in a compact, lightweight design

Its robustness makes the SDC-15 ideal for various heavy-duty applications.

The Samlex America SDC-15 is a non-isolated, step-down DC-DC converter engineered for heavy-duty applications requiring a stable 12 VDC output from a 24 VDC nominal input. It accepts an input voltage range of 20 VDC to 35 VDC and provides a regulated 12 VDC nominal output, specifically 13.8 VDC, with a maximum current delivery of 12 Amps. This unit is designed for integration into negative ground systems. Its compact and lightweight form factor, combined with an advanced switch-mode design, allows for flexible mounting in various locations. Key protective features include overvoltage, short-circuit, and input-side reverse polarity protection, alongside temperature-compensated current limiting. This converter is suitable for IT environments and industrial settings where reliable power conversion from 24V to 12V is critical for operating sensitive equipment.
