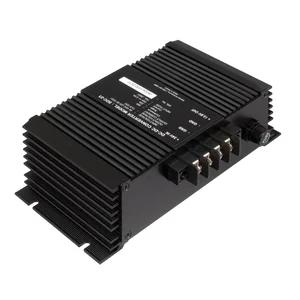

SDC-23 - Samlex America 20A Non-Isolated 24V to 12V DC Converter

20A Non-Isolated 24V to 12V DC-DC Converter

This efficient switch-mode step-down DC-DC converter transforms an input voltage of 24 VDC (with a range of 20 VDC to 35 VDC) into a stable output voltage of 12 VDC (13.8 VDC) at 20 Amps. The converter is non-isolated, designed for negative ground systems, and includes multiple safety features such as overvoltage protection, short-circuit protection, and temperature-compensated current limiting.

Features:

• Advanced switch-mode design for high efficiency
• Versatile mounting options
• Compact and lightweight
• Reverse polarity protection for added safety
• Current limiting circuit to prevent overload
• Overvoltage crowbar circuit for extra protection
• Designed specifically for negative ground systems

Specifications:

• Input: 20-30 VDC
• Output: 13.8 VDC
• Amps: 20 Amps
• Weight: 2.2 lbs (1 kg)
• Dimensions: 7.75 x 4.75 x 2.4 in (19.7 x 12.1 x 6.1 cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy-duty trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

The Samlex America SDC-23 is a 20A non-isolated DC-DC converter engineered to step down a 24VDC input to a stable 12VDC output. This unit accepts an input voltage range of 20VDC to 35VDC and delivers 13.8VDC at 20 Amps, making it suitable for integrating 12V equipment into 24V electrical systems. Its design is specifically for negative ground systems. Key features include overvoltage protection, short-circuit protection, and temperature-compensated current limiting, enhancing operational safety and reliability. The compact and lightweight form factor, combined with versatile mounting options, facilitates integration into various professional environments. This converter addresses the need for a dependable power conversion solution in applications such as heavy-duty trucks, earth-moving equipment, buses, and marine vehicles, enabling the use of 12V accessories like CB radios, lighting, and sound systems.
