226-007 - Vdo ALAS Adjustable Fuel Sender - 6-3/4 to 23" - 240-33 Ohm

ALAS Adjustable Fuel Sender - 6-3/4 to 23" - 240-33 Ohm

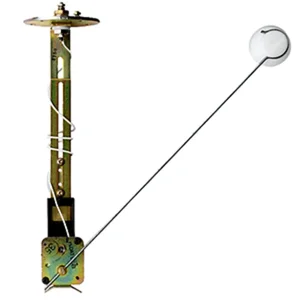

VDO ALAS 12/24 V adjustable swingarm senders are engineered for severe-duty use. The sender main body features a plated steel construction to help eliminate damage caused by fuel slosh.

These units contain an SAE standard 5-hole metal mounting flange and body components, which can be adjusted from 6 in. to 23 in. tank depth, and are adaptable to right or left hand swingarm.  For maximum durability, the wiper and thick film resistor are shielded (from fuel slosh) and the float arm stops to ensure the wiper remains in contact with its resistor board when tank is full or low.

Features:

• Connection - M4 Stud
• Voltage: 6-24V

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO ALAS Adjustable Fuel Sender (part number 226-007) is a component designed for accurate fuel level measurement in various applications. This unit is suitable for IT and operations managers maintaining fleets or industrial equipment requiring reliable fuel monitoring. It features a plated steel construction for durability and an SAE standard 5-hole metal mounting flange. The sender's body components are adjustable, accommodating tank depths from 6-3/4 inches to 23 inches, and can be configured for either right or left-hand swingarm operation. Engineered for severe-duty use, its wiper and thick film resistor are shielded to mitigate damage from fuel slosh. The float arm includes stops to ensure continuous contact between the wiper and resistor board across the full and low tank levels. This sender operates within a 6-24V range and connects via M4 studs, providing a 240-33 Ohm output.
