226-635 - Vdo Reed Switch Fuel Sender - 350 MM

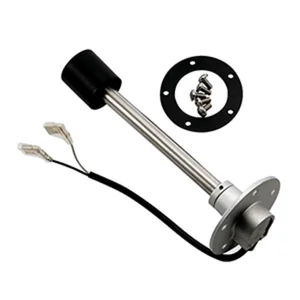

Reed Switch Fuel Sender - 350 MM

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements.  This revolutionary design comes with many benefits!  This is ideal for applications where a conventional swing arm will not fit due to clearance issues.  The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.

The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out.  It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.

Features:

• Stainless steel construction
• Ethanol resistant Viton gasket
• 240-33 Ohm range
• Fits tanks with a depth of 13.8" (350mm)
• Insulated 1/4"" spade connectors
• Standard 5 hole mounting flange
• Works with most standard marine fuel gauges
• Ground - Floating
• Connection - Insulated .25" Spade

*Sold as an Individual

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The VDO Reed Switch Fuel Sender, part number 226-635, is a specialized fuel level sensor designed for applications where traditional swing-arm senders are impractical. Its tubular, floatless design addresses clearance constraints and minimizes pointer fluctuations caused by fuel slosh, providing more stable readings. Constructed from stainless steel with an ethanol-resistant Viton gasket, this sender offers durability in various fuel environments. It is suitable for tanks with a depth of 13.8 inches (350mm) and operates within a 240-33 Ohm range, compatible with most standard marine fuel gauges. The unit features a standard SAE 5-hole mounting flange for top-mounted installation and includes a neoprene gasket and mounting hardware. Its insulated 1/4" spade connectors facilitate a floating ground connection.
