166-0586 - Trident Marine 5/8" x 50' FDA Hot Water Hose - Drinking Water

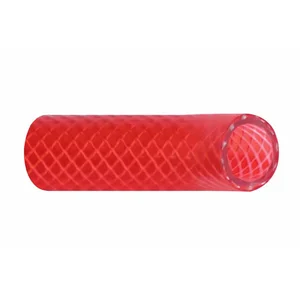

Trident Marine 5/8" x 50' FDA Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red

The Trident 166 Series is an FDA-grade hot water feed line hose designed for optimal performance in demanding marine environments. This reinforced PVC hose is non-toxic, odorless, and tasteless, making it a safe choice for drinking water applications. With a temperature tolerance of up to 149°F (65°C) and a maximum pressure capacity of 250 psi, this hose is built to last.

Key Features:

• Distinctive red cover for easy identification of hot water lines on boats.
• Constructed with 3-ply polyester for superior abrasion resistance and flexibility.
• Certified safe for use with drinking water.

Application:

• Ideal for hot and pressurized applications, including hot water feeds, drains, and vent lines.

Specifications:

• Temperature Range: -18°F to 149°F (-28°C to 65°C)
• Length: 50' (15.24m)
• Inner Diameter: 5/8" (15.9 mm)
• Outer Diameter: 0.866" (22.5 mm)
• Working Pressure: 230 PSI (16 bar)
• Bend Radius: 1.26" (32 mm)

*Burst Pressure is 4x Working Pressure.

The Trident Marine 5/8" x 50' FDA Hot Water Hose is a specialized feed line designed for marine hot water applications. This reinforced PVC hose is non-toxic, odorless, and tasteless, making it suitable for drinking water systems. It is engineered to handle temperatures up to 149�F (65�C) and a working pressure of 230 PSI. The hose features a 3-ply polyester construction for abrasion resistance and flexibility, and its translucent red cover allows for easy identification of hot water lines on boats. This product, part number 166-0586, is intended for IT and facilities managers in marine-focused businesses requiring reliable and safe hot water feed, drain, or vent lines. It addresses the need for a durable hose that meets FDA standards for potable water in pressurized hot water environments.
