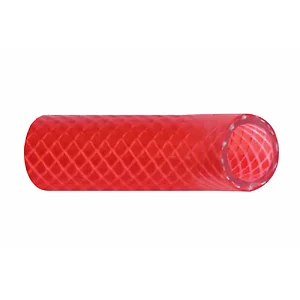

166-0346-FT - Trident Marine 3/4" FDA Hot Water Hose - Drinking Water Safe

Trident Marine 3/4" FDA Hot Water Hose - Drinking Water Safe

This 3/4" reinforced PVC hose is designed specifically for hot water feed lines in marine applications. Made from FDA-grade materials, it is non-toxic, odorless, and tasteless, ensuring safe use for drinking water. It can withstand temperatures up to 149�F (65�C) and pressures up to 250 psi, making it perfect for demanding environments.

Key Features:

• Sold by the foot
• Easy identification for "Hot Water" lines with its red cover
• 3-ply polyester reinforcement for superior abrasion resistance
• Safe for drinking water applications

Applications:

• Ideal for hot, pressurized applications, including hot water feeds, drains, and vent lines

Specifications:

• Inner Diameter: 3/4" (19 mm)
• Outer Diameter: 1" (25.4 mm)
• Working Pressure: 220 PSI (15 bar)
• Bend Radius: 1.5" (38 mm)

*Burst Pressure is 4x Working Pressure.

The Trident Marine 3/4" FDA Hot Water Hose is designed for hot water feed lines in marine environments. This reinforced PVC hose is constructed from FDA-grade materials, making it suitable for drinking water applications due to its non-toxic, odorless, and tasteless properties. It features a red cover for easy identification as a hot water line and incorporates 3-ply polyester reinforcement for abrasion resistance and durability. The hose can manage hot, pressurized applications, including hot water feeds, drains, and vent lines, with a working pressure of 220 PSI and a temperature tolerance up to 149�F (65�C). Its 3/4" inner diameter and 1" outer diameter, combined with a 1.5" bend radius, facilitate installation in demanding settings. This product, part number 166-0346-FT, is sold by the foot to accommodate specific project lengths.
