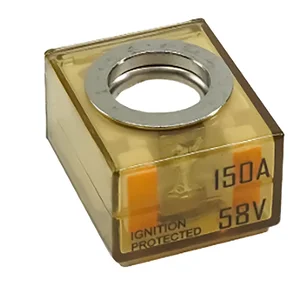

3603-150 - Egis Mobile Electric Egis MRBF 150 Amp Terminal Fuse - Protection for DC Circuits

MRBF 150 Amp Terminal Fuse for DC Circuit Protection

• Transparent design for easy visual inspection of fuse status
• Ignition-protected, compliant with SAE/J1171 and ISO8846 standards
• High interrupt rating meets ABYC requirements, ideal for large battery banks
• Color-coded for easy identification of amp rating

Key Features:

• Safeguards electrical circuits against short circuits and over-current loads, preventing overheating and damage to wire insulation.
• High interrupt current capability securely protects circuits linked to substantial paralleled battery banks.
• Ignition protected for safe installation in enclosed spaces with potential explosive gases; designed to withstand harsh environments with shock and vibration resistance, perfect for marine and vehicle applications.
• Sealed against dust and water intrusion, ensuring reliable circuit protection throughout the electrical system's life.
• Rated for 58 VDC, compatible with 12 to 48V nominal applications.
• Backed by a 4-year warranty, affirming our commitment to quality and reliability.

Technical Specifications:

• Continuous Current: 150 Amps
• Maximum Voltage: 58 VDC
• Interrupt Rating @ 14 VDC: 10,000 Amps
• Interrupt Rating @ 48 VDC: 5,000 Amps
• Interrupt Rating @ 58 VDC: 2,000 Amps
• Ingress Protection Rating: IP66

The Egis Mobile Electric MRBF 150 Amp Terminal Fuse, part number 3603-150, provides over-current and short-circuit protection for DC electrical systems. This resettable fuse is designed for integration with large battery banks in applications ranging from 12V to 48V nominal, up to a maximum of 58 VDC. Its high interrupt rating meets ABYC requirements, making it suitable for environments where substantial current loads are present. The fuse features an ignition-protected design, complying with SAE/J1171 and ISO8846 standards, which allows for safe installation in enclosed spaces. With an IP66 ingress protection rating, it is sealed against dust and water, offering resistance to shock and vibration. This makes it a practical component for marine and vehicle applications, where durability and reliable circuit safeguarding are essential to prevent damage to wiring and connected equipment.
