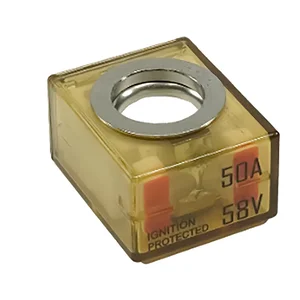

50 Amp MRBF Terminal Fuse
- Transparent design for easy visual status check
- Ignition-protected: SAE/J1171-ISO8846 compliance
- High interrupt rating meets ABYC requirements for DC main circuit protection on larger battery banks
- Color-coded for quick identification of amperage rating
Key Features:
- Safeguards electrical circuits from short circuits and over-current loads, preventing damage to wire insulation.
- High interrupt current rating provides safety for circuits connected to high-capacity battery banks.
- Ignition protected for safe installation in areas with potentially explosive gases; designed to withstand harsh marine and vehicular environments.
- Sealed for dust and water intrusion protection, ensuring long-lasting reliability of circuit protection.
- Supports nominal applications of 12 to 48V with a 58 Vdc rating.
- 4-Year warranty demonstrating our confidence in product performance.
Specifications:
- Continuous Current: 50 Amps
- Maximum Voltage: 58 VDC
- Interrupt Rating at 14 VDC: 10,000 Amps
- Interrupt Rating at 48 VDC: 5,000 Amps
- Interrupt Rating at 58 VDC: 2,000 Amps
- Ingress Protection: IP66
