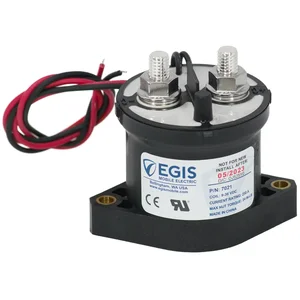

7021 - Egis Mobile Electric Egis 250A Contactor for 12/24V Applications

Egis 250A Contactor for 12/24V Applications

This high-performance 250A Egis contactor is designed to optimize installation efficiency by minimizing extensive cable runs for manual switches. It facilitates robust remote switching for high-current engines and auxiliary loads.

Key Applications:

• Ensures reliable operation throughout the installation's lifespan with a hermetically sealed design that protects against dust and moisture ingress.
• The contactor supports both 12V and 24V DC control voltage applications and can accommodate higher switching voltages up to 48V and beyond.

Product Benefits:

• Safe for use in enclosed compartments, providing ignition protection in environments with potential explosive gases.
• Exceptional electrical switching endurance with 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V.
• Capable of safely interrupting high inrush currents, managing locked starter situations up to 1,500A @ 14V DC.
• Constructed with premium materials for durability, featuring a sealed device, high-temperature construction for engine compartments, and stainless steel self-locking hardware.
• Includes an industry-leading 4-year warranty for peace of mind.

Technical Specifications:

• Continuous Current Rating: 250/500 Amps
• Control Voltage Range: 9-36 VDC
• Ingress Protection Rating: IP67/IP69K
• Ignition Protection Standards: ISO-8846 / UL 1500
• Electrical Endurance: 1,000,000 cycles
• Minimum Operating Temperature: -40�C
• Maximum Operating Temperature: 85�C

Premium Features:

• Sealed Enclosure: Provides protection against dust and moisture while maintaining a high temperature rating for all installation locations.
• 18-8 Stainless Steel Self-Locking Hardware: Offers resistance to corrosion and ensures reliable long-term connectivity.
• High Interrupt Capability: Effectively manages high inrush current scenarios.
• Easy Installation: Features reinforced mounting holes for secure setup.

WARNING: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more details, visit P65Warnings.ca.gov.

The Egis Mobile Electric 250A Contactor, part number 7021, is designed for remote switching of high-current engines and auxiliary loads in 12V and 24V DC applications. This definite purpose contactor helps optimize installation efficiency by reducing the need for extensive cable runs associated with manual switches. It is suitable for environments requiring robust and reliable power management, including those with potential explosive gases, due to its ignition protection (ISO-8846 / UL 1500). The unit features a hermetically sealed design (IP67/IP69K) for protection against dust and moisture, ensuring operational reliability over time. Constructed with high-temperature materials and 18-8 stainless steel self-locking hardware, it offers durability and corrosion resistance. It supports a continuous current rating of 250/500 Amps and can manage high inrush currents, including locked starter situations up to 1,500A @ 14V DC. The contactor operates within a control voltage range of 9-36V DC and has an electrical endurance of 1,000,000 cycles.
