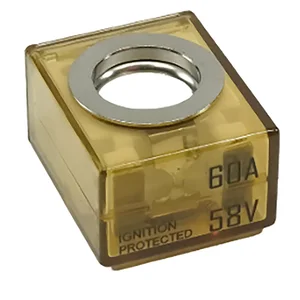

MRBF Terminal Fuse - 60 Amp
- Transparent design for easy visual indication of fuse status
- Ignition-protected, meeting SAE/J1171 and ISO8846 standards
- High interrupt rating meets ABYC requirements for DC main circuit protection in large battery banks
- Color-coded for simple identification of amperage rating
Features:
- Protects electrical circuits from short circuit events and overcurrent loads, preventing overheating and damage to wire insulation.
- High interrupt current rating provides safe protection for circuits connected to large paralleled battery banks.
- Ignition protected for safe installation in compartments with potentially explosive gases. Designed to withstand harsh environments with shock and vibration resistance, suitable for marine and vehicle electrical systems.
- Sealed against dust and water intrusion for reliable circuit protection throughout the life of the electrical installation.
- 58 Vdc rating supports applications with nominal voltages of 12 to 48V.
- 4-Year warranty reflecting our commitment to high-quality and dependable performance.
Specifications:
- Continuous Current (Amps): 60
- Max Voltage (VDC): 58
- Interrupt Rating at 14 VDC (Amps): 10,000
- Interrupt Rating at 48Vdc (Amps): 5,000
- Interrupt Rating at 58Vdc (Amps): 2,000
- Ingress Protection: IP66
