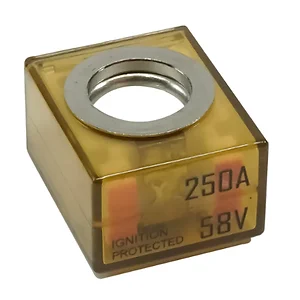

3603-250 - Egis Mobile Electric 250 Amp MRBF Terminal Fuse for Circuit Protection

250 Amp MRBF Terminal Fuse

• Transparent design for easy visual status checking.
• Ignition protected, compliant with SAE/J1171 and ISO8846 standards.
• High interrupt rating meets ABYC requirements for DC main circuit protection on larger battery banks.
• Color-coded for easy identification of amperage rating.

Key Features:

• Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation damage.
• High interrupt current rating ensures safe protection for circuits connected to large battery banks.
• Ignition protected, making it safe for installation in closed compartments with potentially explosive gases.
• Designed for harsh environments with shock and vibration resistance, ideal for marine and vehicle applications.
• Sealed against dust and water intrusion for reliable circuit protection throughout the installation's life.
• 58 Vdc rating supports 12 to 48V nominal applications easily.
• 4-year warranty backing the product performance and reliability.

Specifications:

• Continuous Current (Amps): 250
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48 VDC (Amps): 5,000
• Interrupt Rating @ 58 VDC (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric 3603-250 is a 250 Amp MRBF Terminal Fuse designed for robust circuit protection in demanding environments. This resettable fuse safeguards electrical circuits from short circuits and over-current loads, mitigating the risk of wire insulation damage. It is suitable for IT infrastructure and equipment requiring reliable DC main circuit protection, particularly when connected to larger battery banks. The unit features a transparent design for visual status checking and is color-coded for amperage identification. With an IP66 ingress protection rating, it is sealed against dust and water, ensuring consistent performance in harsh conditions. Its ignition-protected design, compliant with SAE/J1171 and ISO8846 standards, makes it appropriate for installation in enclosed compartments where explosive gases may be present. The fuse supports 12V to 48V nominal applications with a 58 Vdc maximum voltage rating and offers a high interrupt current rating to meet ABYC requirements.
