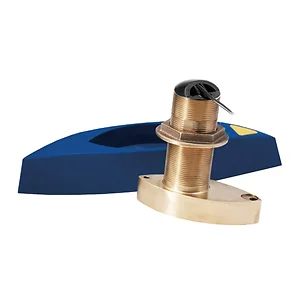

Airmar B785C Triducer Medium CHIRP with Humminbird 9-Pin Mix-N-Match Cable
Model: B785C-M-HBThe B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Humminbird 9-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75") |
The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready unit designed for marine depth and water-temperature sensing. This 600W transducer operates within a medium frequency range of 80 to 130 kHz, offering 50 kHz of total bandwidth. It is suitable for both offshore and freshwater anglers, providing bottom detail and fish-target separation in depths up to 274 meters (900 feet). The B785C-M-HB model is specifically configured with a Humminbird 9-pin connector for compatibility with relevant display units. Its bronze housing and included high-performance fairing are intended for optimal performance on planing or displacement hulls, particularly at speeds exceeding 30 knots. The unit also features patented Xducer ID technology and requires a 51mm (2-inch) hole for installation. This transducer addresses the need for reliable underwater data acquisition in various fishing environments.
This transducer operates within a medium frequency band of 80 to 130 kHz, providing 50 kHz of total bandwidth. It covers popular fishing frequencies such as 88 and 107 kHz.
The box includes the B785C-M-MM Triducer, a fairing block, an anti-rotation bolt, and an MMC-HB cable for connection to Humminbird displays.
This transducer is recommended for use on planing or displacement hulls. The bronze housing and high-performance fairing are designed for optimal performance, including at higher speeds.
The Airmar B785C transducer has a maximum depth capability of 274 meters (900 feet).
B785C-M-HB - Airmar B785C Bronze Transducer Medium CHIRP With Humminbird 9-Pin
