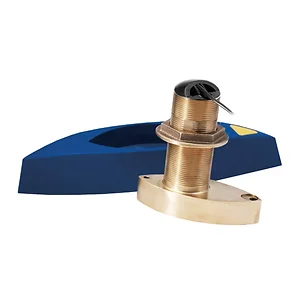

Airmar B785C Triducer Medium CHIRP with Navico 9-Pin Mix-N-Match Cable
Model: B785C-M-9NThe B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Navico 9-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75") |
The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready triducer designed for marine applications, providing depth and fast-response water temperature sensing. It operates within a medium frequency band of 80 to 130 kHz, offering 50 kHz of total bandwidth. This transducer is suitable for identifying fish targets and bottom detail in shallow to mid-depths, with a maximum depth capability of 274 meters (900 feet). Its 600 W power rating and 24� to 16� beamwidth are designed for effective performance in various water conditions. The bronze housing and included High-performance Fairing support optimal operation on planing or displacement hulls, even at speeds exceeding 30 knots. The B785C-M-9N model includes a Navico 9-Pin connector via an MMC-9N cable, making it compatible with relevant Navico systems. It is recommended for smaller fishing boats and offshore or freshwater anglers requiring reliable sonar data.
This transducer operates within a medium frequency band of 80 to 130 kHz, providing 50 kHz of total bandwidth. It has a power rating of 600 W.
The Airmar B785C has a maximum depth capability of 274 meters (900 feet).
The box includes the B785C-M-MM Triducer, a Fairing Block, an Anti-rotation Bolt, and an MMC-9N cable with a Navico 9-Pin connector.
This transducer is recommended for use on planing or displacement hulls. The included High-performance Fairing helps maintain optimal performance at higher speeds.
B785C-M-9N - Airmar B785C Bronze Transducer Medium CHIRP With Navico 9-Pin
