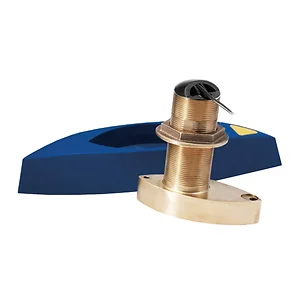

B785C-M-BB - Airmar B785C Bronze Transducer Medium CHIRP With Si-Tex 8-Pin

Airmar B785C Triducer Medium CHIRP with Si-Tex 8-Pin Mix-N-Match Cable

• Depth & fast-responDepth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900')
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B785C-M-MM Triducer
• Fairing Block
• Anti-rotation Bolt
• MMC-BB cable

The Airmar B785C Bronze Transducer, part number B785C-M-BB, is a thru-hull CHIRP-ready triducer designed for marine applications, specifically for offshore and freshwater anglers. This unit provides depth and fast-response water temperature sensing. It operates within a medium frequency band of 80 to 130 kHz, offering 50 kHz of total bandwidth. With a 600 W power rating, it can achieve a maximum depth of 274 meters (900 feet). The transducer features a 24� to 16� beamwidth, which aids in bottom detail and fish-target separation across shallow to mid-depths. Its bronze housing and included high-performance fairing are suitable for planing or displacement hulls, maintaining optimal performance at speeds over 30 knots. The B785C-M-BB is equipped with an Airmar 12-Pin (MMC) acoustic window connector and includes an MMC-BB cable with a Si-Tex 8-Pin display connector, making it compatible with Si-Tex systems.
