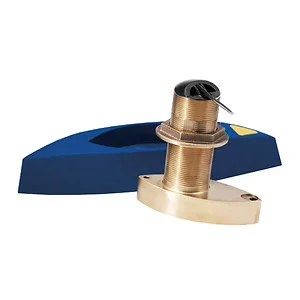

B785C-M-BL - Airmar B785C Bronze Transducer Medium CHIRP With Navico BL 7-Pin

Airmar B785C Triducer Medium CHIRP with Navico 7-Pin Mix-N-Match Cable

• Depth & fast-responDepth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900')
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B785C-M-MM Triducer
• Fairing Block
• Anti-rotation Bolt
• MMC-BL cable

The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready triducer designed for marine applications requiring depth and water temperature sensing. Operating within a medium frequency band of 80 to 130 kHz, this unit provides 50 kHz of total bandwidth, covering common fishing frequencies like 88 and 107 kHz. It offers a maximum depth capability of 274 meters (900 feet) with a 600 W power rating. The B785C-M-BL is suitable for both planing and displacement hulls, and its bronze housing includes a high-performance fairing to maintain optimal broadband performance at speeds exceeding 30 knots. This transducer is intended for offshore and freshwater anglers on smaller fishing boats, providing detailed bottom information and fish-target separation in shallow to mid-depth waters. It features a Navico 7-pin display connector and a 9-meter cable, integrating Airmar's Xducer ID technology.
