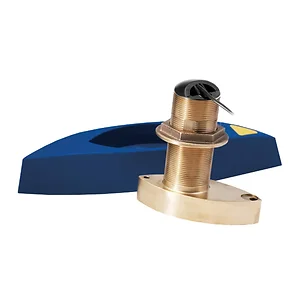

B785C-M-0 - Airmar B785C Bronze Transducer Medium CHIRP With Bare Wire Mix-N-Match

Airmar B785C Triducer Medium CHIRP with bare Wire Mix-N-Match Cable

• Depth & fast-responDepth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Maximum depth of 274 m (900')
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull
• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• B785C-M-MM Triducer
• Fairing Block
• Anti-rotation Bolt
• MMC-0 cable

The Airmar B785C Bronze Transducer is a thru-hull, CHIRP-ready single-band transducer designed for marine applications, specifically for offshore and freshwater anglers. This unit provides depth and fast-response water-temperature sensing, operating within a medium frequency range of 80 to 130 kHz. It offers a 24� to 16� beamwidth and a maximum depth capability of 274 meters (900 feet).

With a 600 W power rating, the B785C-M-0 transducer is suitable for smaller fishing boats and is recommended for use on both planing and displacement hulls. Its bronze housing, combined with an included high-performance fairing, is engineered to maintain optimal performance at speeds exceeding 30 knots (34 MPH). The fairing also accommodates deadrise ranges up to 24�. The transducer features patented Xducer ID� technology and comes with a 9-meter (30ft) cable with a bare wire display connector, utilizing an Airmar 12-Pin (MMC) connector.
