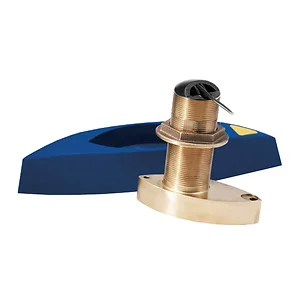

Airmar B785C Triducer Medium CHIRP with Garmin 8-Pin Mix-N-Match Cable
Model: B785C-M-8GThe B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Garmin 8-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75") |
The Airmar B785C Bronze Transducer Medium CHIRP With Garmin 8-Pin is a thru-hull, CHIRP-ready triducer designed for marine applications, specifically for offshore and freshwater anglers. This unit provides depth and fast-response water-temperature sensing capabilities. Operating within a medium frequency band of 80 to 130 kHz, it offers 50 kHz of total bandwidth, covering popular fishing frequencies such as 88 and 107 kHz. The transducer is rated for 600 W of power and can achieve a maximum depth of 274 m (900'). Its 24� to 16� beamwidth is suitable for identifying fish targets and bottom detail in shallow to mid-depth waters. The bronze housing and included High-performance Fairing are recommended for use on planing or displacement hulls, with the fairing improving performance at speeds exceeding 30 knots (34 MPH). The B785C-M-8G includes a Garmin 8-Pin Mix-N-Match Cable for connectivity and features patented Xducer ID� technology. This product is suitable for smaller fishing boats requiring reliable depth and temperature data.
The Airmar B785C transducer has a maximum depth capability of 274 meters (900 feet).
The box contains the B785C-M-MM Triducer, a Fairing Block, an Anti-rotation Bolt, and an MMC-8G cable.
This transducer is recommended for use on planing or displacement hulls, and its bronze housing with a High-performance Fairing is designed for optimal performance at higher speeds.
The Airmar B785C operates within a medium frequency band of 80 to 130 kHz, providing 50 kHz of total bandwidth.
